Part 1: The Summit Awaits — Azure Fundamentals & Core Concepts

Marcus Begins His Azure Journey

The First Day

Marcus sits at his desk on day one at CloudVault. His task is clear: build a fintech platform on Azure. But first, he needs to understand how Azure works.

“Azure is a cloud platform,” his manager explains. “But it’s organized differently than AWS. If you understand the organizational model, everything else makes sense.”

Marcus opens the Azure portal and sees a hierarchy he’s never encountered before: subscriptions, resource groups, regions, and resources. Each level serves a purpose.

“Let’s start at the top,” Marcus decides. “And work our way down.”

Understanding Azure’s Architecture

Azure operates as a global cloud platform with data centers in 60+ regions worldwide. Unlike AWS, which uses a region-based model with separate availability zones, Azure combines regions with availability zones for redundancy. Each region contains multiple data centers that work together to provide high availability and disaster recovery.

The fundamental organizational structure in Azure consists of three layers: subscriptions, resource groups, and individual resources. This hierarchy provides clear boundaries for billing, access control, and resource management.

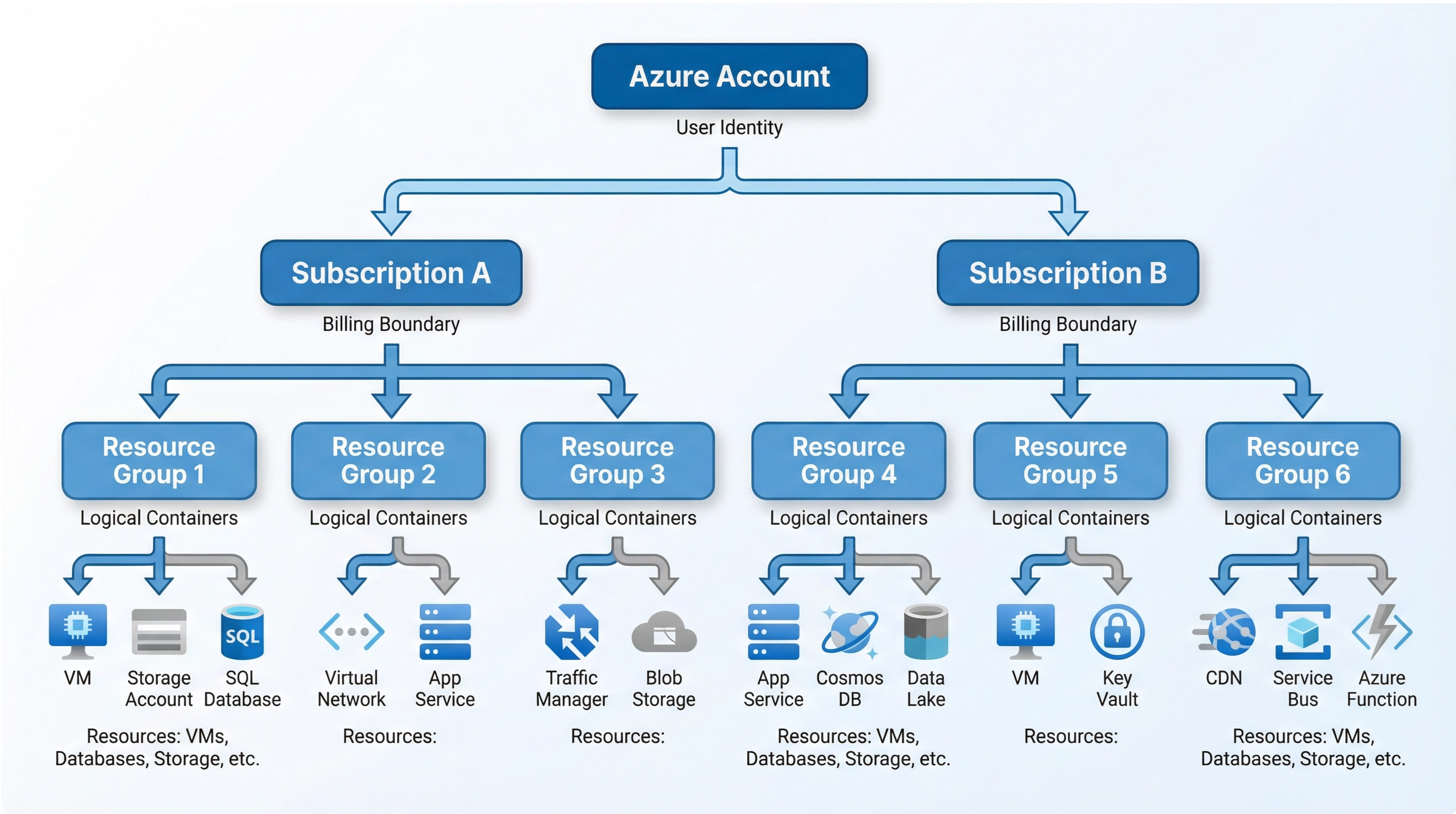

Azure’s Organizational Hierarchy

Azure organizes resources in a four-level hierarchy:

• Azure Account — Your identity
• Subscription — Billing boundary
• Resource Group — Logical container
• Resources — VMs, databases, storage, etc.

Subscriptions: Your Billing Boundary

A subscription in Azure is equivalent to an AWS account. It represents your billing boundary and access control unit. Each subscription is tied to an Azure account and contains all resources you create within that subscription. Organizations typically create multiple subscriptions to separate environments (development, staging, production), departments, or business units.

# List all subscriptions
az account list --output table

# Set active subscription
az account set --subscription "My Subscription"

# Get subscription details
az account show

Key Points:

• Each subscription has its own billing
• Resources belong to exactly one subscription
• Access control (RBAC) is managed at subscription level
• You can have multiple subscriptions under one Azure account

Resource Groups: Logical Organization

Resource groups are logical containers that hold related resources for an Azure solution. Unlike AWS regions, resource groups are purely organizational units without geographic significance. All resources within a group can share lifecycle management, permissions, and billing tracking.

A best practice is to create resource groups that align with your application structure. For example, you might create separate resource groups for your web tier, API tier, and data tier, allowing you to manage permissions and costs independently.

# Create a resource group
az group create \
  --name rg-cloudvault-prod \
  --location eastus

# List resources in a group
az resource list --resource-group rg-cloudvault-prod --output table

# Delete a resource group (deletes all resources within it)
az group delete --name rg-cloudvault-prod

Best Practices:

• One resource group per application or environment
• Use naming conventions: rg-{app}-{env}
• All resources in a group share the same lifecycle
• Easier to manage permissions and costs

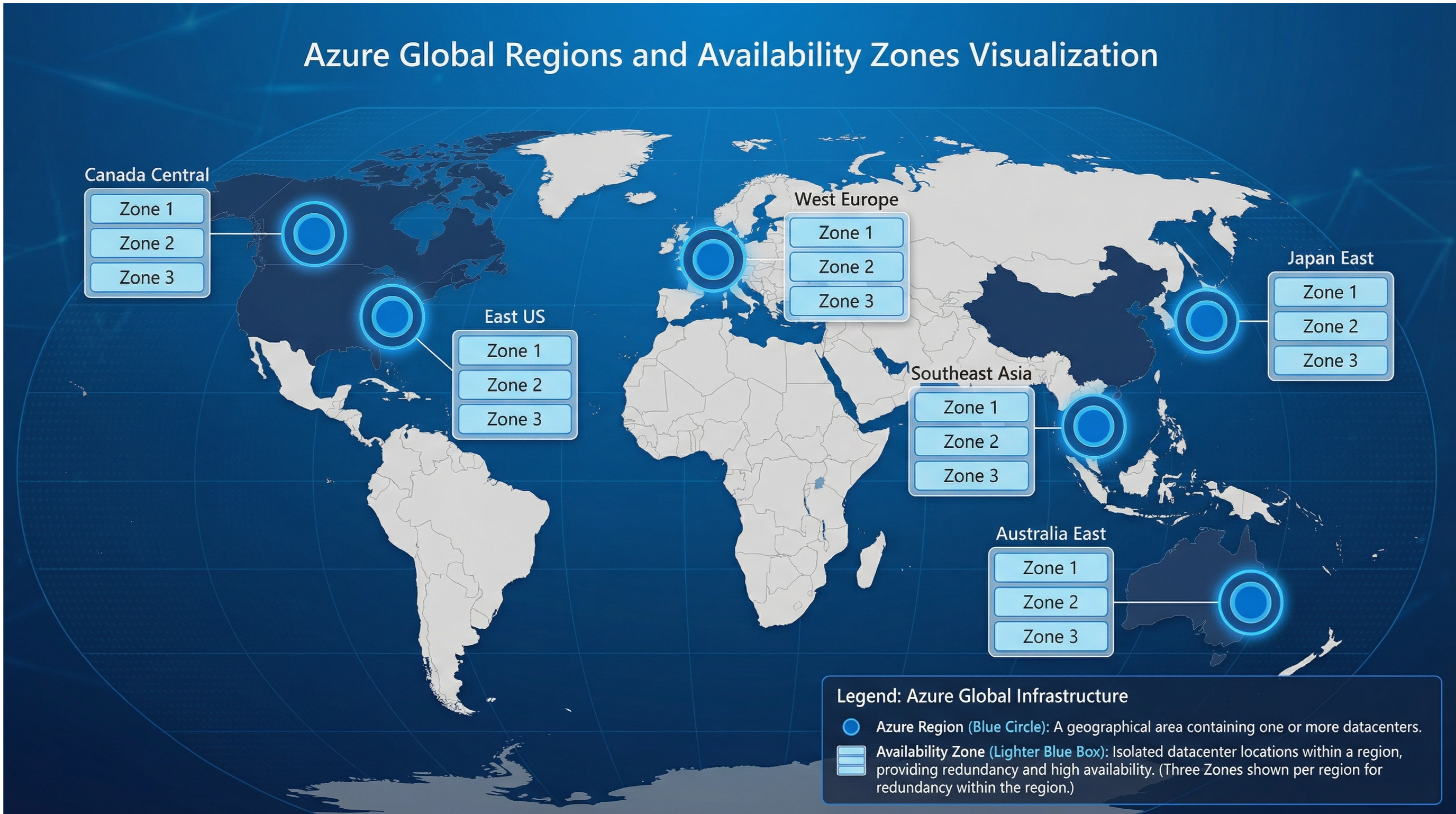

Regions and Availability Zones

Azure has data centers in 60+ regions worldwide. When you create a resource, you specify which region it runs in.

Why Regions Matter

• Latency — Users in Europe should use European regions
• Compliance — Some regulations require data to stay in specific regions (GDPR, HIPAA)
• Availability — Distribute across regions for disaster recovery
• Cost — Some regions are more expensive than others

Availability Zones

Within each region, Azure provides availability zones—isolated data centers with independent power, cooling, and networking. If one zone fails, your application continues running in another zone.

# List available regions
az account list-locations --output table

# Check which regions support availability zones
az vm list-skus --location eastus --output table | grep -i zone

Azure Resource Manager (ARM) & Bicep

The Azure Resource Manager is the deployment and management service for Azure. It provides a consistent management layer for all Azure services, enabling Infrastructure as Code through ARM templates or Bicep. ARM templates are JSON files that define your infrastructure, while Bicep is a more readable domain-specific language that compiles to ARM templates.

Bicep Example

param location string = 'eastus'
param environment string = 'prod'

resource storageAccount 'Microsoft.Storage/storageAccounts@2021-02-01' = {
  name: 'cvaultstorage${environment}'
  location: location
  sku: {
    name: 'Standard_LRS'
  }
  kind: 'StorageV2'
  properties: {
    accessTier: 'Hot'
  }
}

resource appServicePlan 'Microsoft.Web/serverfarms@2021-01-15' = {
  name: 'plan-cloudvault-${environment}'
  location: location
  sku: {
    name: 'B2'
    capacity: 2
  }
  kind: 'linux'
}

output storageAccountId string = storageAccount.id
output appServicePlanId string = appServicePlan.id

Deploy it:

az deployment group create \
  --resource-group rg-cloudvault-prod \
  --template-file main.bicep \
  --parameters environment=prod

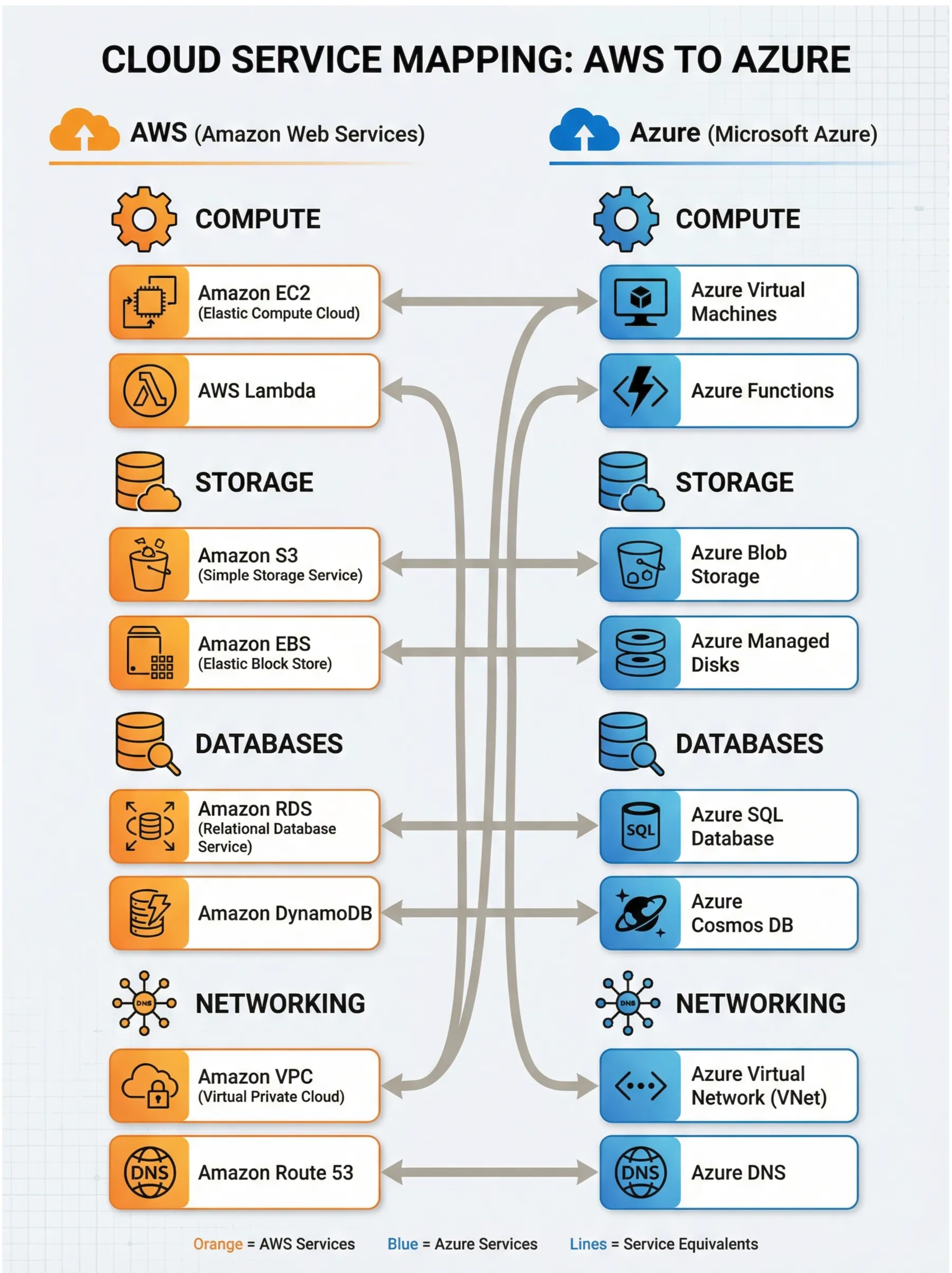

AWS to Azure Service Mapping

Understanding the terminology differences between AWS and Azure is crucial for transitioning your knowledge.

Detailed Comparison Table

Cost Management

Azure charges for resources you use. Understanding costs is critical for production systems.

Cost Factors

• Compute — VMs, App Service instances (hourly)
• Storage — GB per month
• Data transfer — Egress charges (ingress is free)
• Services — Each service has its own pricing model
• Reserved instances — Commit to 1 or 3 years for discounts

Cost Optimization Strategies

# Check current spending
az costmanagement query \
  --timeframe MonthToDate \
  --type Usage

# Set up budget alerts
az costmanagement budget create \
  --name "Monthly Budget" \
  --amount 1000 \
  --time-grain Monthly

Best Practices:

• Right-size resources — Don’t over-provision
• Use reserved instances — Save 30-70% with 1-3 year commitments
• Delete unused resources — They still cost money
• Monitor spending — Use Azure Cost Management
• Use spot instances — For non-critical workloads (up to 90% discount)

Key Takeaways

• Subscriptions are billing boundaries; resource groups are logical containers
• Regions matter for latency, compliance, and cost
• Availability zones provide redundancy within a region
• Bicep enables Infrastructure as Code
• Cost management is critical—estimate before you build
• ARM is the deployment engine for all Azure services

What’s Next?

Marcus understands the fundamentals. Now he needs to deploy CloudVault’s API. In the next chapter, we’ll explore Azure’s compute services and build a production-ready Spring Boot application.

The summit awaits.

This is Part 1 of a 6-part series: “The Azure Ascent: A Backend Engineer’s Journey to Cloud Mastery.”
